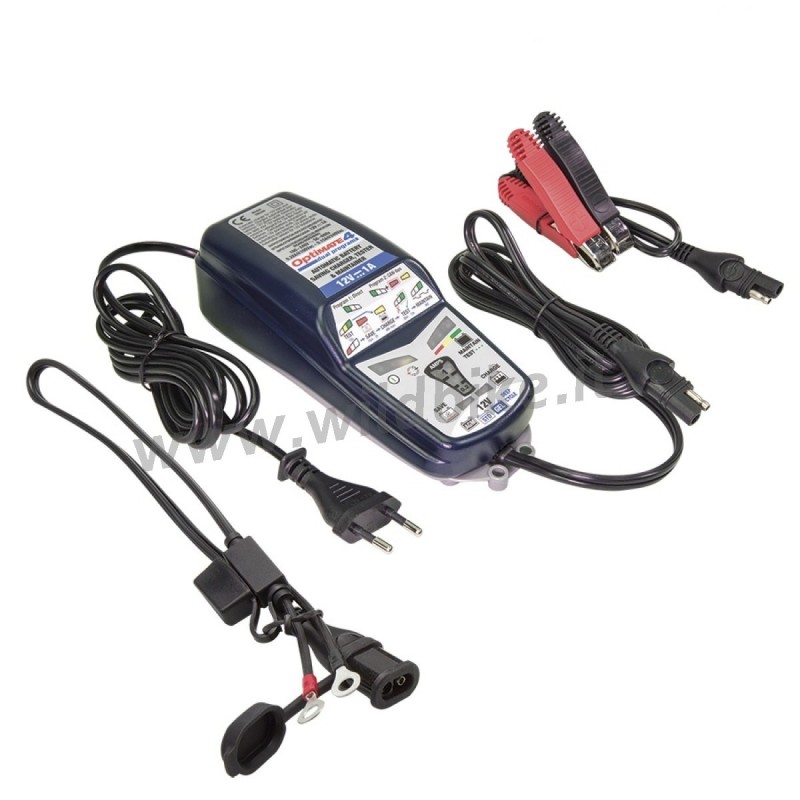

BATTERY CHARGER OPTIMATE 4 OPTIMATE 4 TM-340 DUAL 0,8 AMPH

OptiMate 4: the new benchmark – with unique Diagnostics Optimizer for lead-acid batteries from 12V up to 50Ah battery capacity, sealed type ' MF ', conventional, or gel caps.

4 Mate Nell'Opti, elegant and secure frame, LED panel attracts the gaze are just a first impression of the new benchmark.

OptiMateTM4, the unique "all-in-one" for the maintenance of 12V batteries at home, is now available with DUAL PROGRAM, running Diagnostics, recovery, charging, testing and maintaining optimum automatic. With direct connection, or by selecting the program to run the upload via the 12V plug on bikes equipped with CAN-bus.

Activation without TOUCHING the KEY: OptiMate 4 DUAL PROGRAM performs the upload and maintenance automatically until battery is not disconnected. OptiMate 4 DUAL PROGRAM includes the recovery mode low voltage IMPULSE for a more effective recovery of neglected batteries, a battery of test link-easy to use, elegant weatherproof housing with integrated handles, and improved effi ciency. Extending the battery life up to 400%, OptiMate 4 DUAL PROGRAM maintains the battery safe and ready to use for months.

OptiMate 4 DUAL PROGRAM. Battery performance guaranteed!

Operation

1. you canToggle between STANDARD program to CAN-BUS with a simple 5-step procedure: connect terminals, connect to the mains, wait for the LED confirms the change of program, disconnect the terminals. You can switch from one program to another as many times as you wish. The LED indicator confirms that the program CAN-BUS is active.

2. safety check: OptiMate 4 DUAL PROGRAM proceeds to perform charging if the battery voltage is above 2V may remain during the initial diagnosis, even if the battery was at 0 .5V before connecting.

3. feature: the microprocessor OptiMate 4 DUAL PROGRAM checks that the system is working properly (the confirmation is indicated by a short flashing of the LEDs).

4. pre-qualifi cation Test: OptiMate 4 DUAL PROGRAM indicates the battery status prior to charging.

5. Desulphation and restore: STANDARD (up to 16V) automatically applies to bring neglected and discharged batteries from sulphation to a rechargeable battery. Very neglected batteries, activates the TURBO (max 22V) if there is electronic components of vehicles/battery is outside the vehicle. Turbo stage is disabled by selecting the program CAN-bus. For the last 15 minutes will enable the safe recovery low voltage impulse.

6. main charge: is provided a constant current of 0.8 A (f)the until the voltage has not risen to 14.3 V.

7. Absorption and equalisation: the current pulse is delivered, to complete the battery as soon as possible.

8. charge Verifi cation and short circuits/control dead cell check: monitors charge acceptance, to detect internal damage and avoid unnecessary charge an unrecoverable battery that cannot be used. If an undamaged battery requires further charging program is switched on pulsed absorption.

9. voltage retention Test: is carried out for 30 minutes during which is not delivered any charging current, with 5 possible test results that indicate the General State of health of the battery. Can be used pre-qualifi cation tests to locate the batteries that can feel the initial charge, but in some cases can lose it overnight ...

10. charge Retention: is delivered a 13 .6V voltage for 30 minutes after each charge retention test, with charging current up to the maximum level available to support it than natural self-discharge or current drain from permanently active vehicle components (LCD display, computer control) or access connected (alarm, immobilizer). The voltage retention test and charge maintenance periodscontinue to alternate every half-hour until the battery is not disconnected. The test result is updated during each test.

CAN-bus program: the program with KEYLESS activation ensures automatic re-opening of the link even with the ignition off.

The test program and alternating charge is intended to provide the tension of maintaining recommended for AGM/GEL batteries, while reducing the average voltage needed for batteries with filler cap STD, making it ideal for trickle charge unlimited 100% safe for any type of lead-acid battery 12V.

• In compliance with all relevant standards EN and IEC and EC directives in force.
• Wide range of accessories, including an extension of Office.
