For Harley-Davidson Softail Street Bob FXBB,Slim FLSL,Low Rider FXLR,Heritage Classic 114 FLHCS,Deluxe FLDE,Breakout FXBR.Öhlins NIX 22 cartridge kits are based on our experience learned through decades of testing and racing in high tier championships.
Öhlins NIX 22 cartridge kits are based on our experience learned through decades of testing and racing in high tier championships. Our cartridge kits deliver loads of performance together with stable damping characteristics while ensuring great comfort and contributing to rider confidence. With the NIX22 cartridge kits this also available for motorcycles with conventional front forks.
Each NIX 22 Öhlins cartridge kit has been tested extensively and tailor made to suit the individual requirements and characteristics for each individual bike. In combination with the well proven “NIX” design which features compression damping in the left leg and rebound damping in the right leg, it allows for a more precise function and stability. All adjustments including spring preload are made at the top cap.
The Öhlins cartridge system fits into the original front fork, springs have to be ordered individually. Please follow our recommendations regarding spring rates and oil in relation to rider's weight and preference listed in the specific cartridge kit's mounting instruction.
Piston diameter: 22mm - Position: front - Spring series: 08423-xx (order separately) No lowering kit available Recommend fork oil: 962112 (1 liter) or 962113 (4 liter) R&T #5 (approx SAE 7.5W) Oil level mm: 140 mm ABE approved.

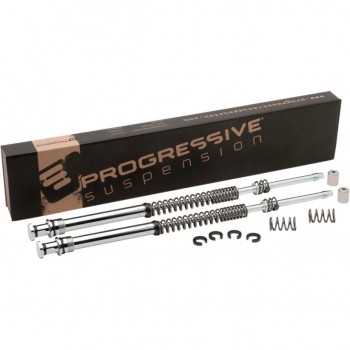

Progressive Suspension.For Harley-Davidson Milwaukee-Eight FXFB Fat Bob,FXBR Breakout,FXBB Street Bob,FXFB Fat Boy,FLHC Heritage Classic.For 49mm Conventional Forks.The asymmetric monotube suspension design is used on the latest high-end sportbikes and motocross applications.Lowering kits lower the front end up to 2"
Improves resistance to front brake dive, front end stability, cornering and bottoming control.Adjustable to standard length or to lower the front end up to 1"
For Indian Scout,Sixty,Bobber.At the time of installation it is possible to choose between a lowering of 25.4 mm or 50.8 mm (1 "or 2").Made in the U.S.A.
For Harley-Davidson Sportster XL 1200N Nightster,1200X Forty-Eight,883L Low,883N Iron.Improves resistance to front brake dive, front end stability, cornering and bottoming control
Upgrade the comfort and performance of your Harley-Davidson with the Öhlins NIX30 American V-Twin cartridge kit. The Öhlins FKS cartridge kit for the Harley-Davidson Softail is based on race proven Öhlins NIX technology to elevate your ride comfort and performance.
Converts dual damper rod forks to high-performance cartridge forks.Contains a pair of high-performance, gas-charged mono-tube fork cartridges and custom-tuned fork springs
For Harley-Davidson Sportster XL 1200C Custom,1200L Low,883L Low,883L Superlow.Improves resistance to front brake dive, front end stability, cornering and bottoming control
For Harley-Davidson Softail Street Bob FXBB,Slim FLSL,Low Rider FXLR,Heritage Classic 114 FLHCS,Deluxe FLDE,Breakout FXBR.Öhlins NIX 22 cartridge kits are based on our experience learned through decades of testing and racing in high tier championships.
