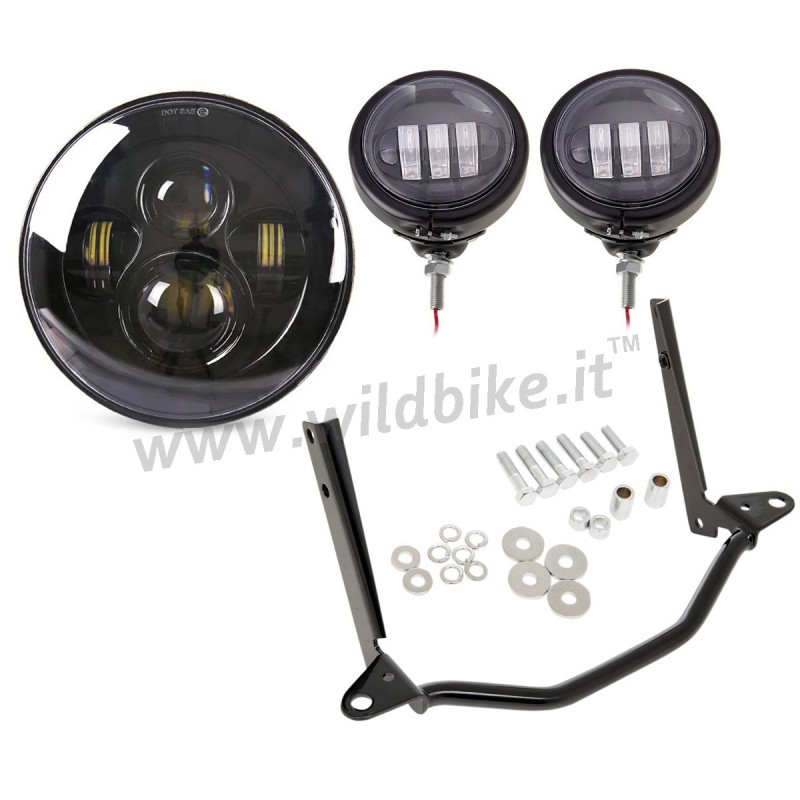

These LED parabolic headlight kits combine a classic 70's body with modern, very bright LED internals
It has a distinct beam that is similar to a standard halogen headlamp, but being LED, it is much brighter and more detailed, without dazzling oncoming traffic.
CE E9 approved
Technical specifications:
Internal central headlight unit which replaces the original:
-Diameter 7"
- LED Chip: CREE
-Voltage: 12v
-Color temperature: 6500K (pure white)
-Lumen:3600LM for high beam, 2400LM for low beam
-Waterproof level: IP67
-Working temperature: -40℃~+80
-Material: Die Cast Aluminum Housing
Complete auxiliary lights:
-Diameter 4.5"
- LED Chip: CREE
-Voltage: 12v
-Color temperature: 6500K (pure white)
-Lumen:1440LM
-Waterproof level: IP67
-Working temperature: -40℃~+80
-Material: Die Cast Aluminum Housing
Support bracket:
Made of 3/4" tubular steel with a glossy black finish
It can be installed with or without a windshield. Longer bolts (not included) are required for mounting with a windshield.
Any light control switch and complete wiring for the auxiliary lights are not included.
Fits:
2005 Harley-Davidson 15th Anniversary Fat Boy-Injected - FLSTF-I
2007 - 2017 Harley-Davidson Deluxe (EFI) - FLSTN
2005 - 2006 Harley-Davidson Deluxe - FLSTN
2005 - 2006 Harley-Davidson Deluxe-Injected - FLSTN-I
2007 - 2017 Harley-Davidson Fat Boy (EFI) - FLSTF
2000 - 2006 Harley-Davidson Fat Boy - FLSTF
2010 - 2016 Harley-Davidson Fat Boy Lo - FLSTFB
2001 - 2006 Harley-Davidson Fat Boy-Injected - FLSTF-I
2016 - 2017 Harley-Davidson Fatboy S - FLSTFBS
2012 - 2017 Harley-Davidson FLS Slim
2006 Harley-Davidson Heritage - FLST
2007 - 2017 Harley-Davidson Heritage Classic (EFI) - FLSTC
2000 - 2006 Harley-Davidson Heritage Classic - FLSTC
2001 - 2006 Harley-Davidson Heritage Classic-Injected - FLSTC-I
2006 Harley-Davidson Heritage Softail Injected - FLST I
2016 - 2017 Harley-Davidson Softail Slim S - FLSS
