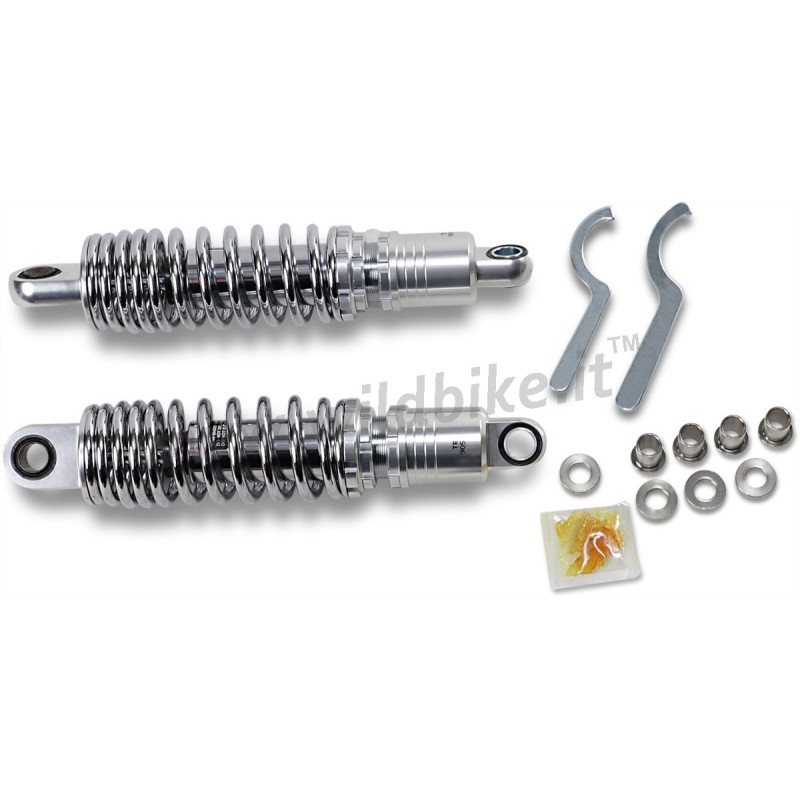

Nitrogen-charged steel monotube damper bodies with hard chrome-plated shafts.
Dual-rate progressive wound springs for a smooth, comfortable ride
Adjustable spring preload.
Ride-height adjustable, +/- 1/2" from size listed.
Black shocks feature black springs and damper bodies with black end caps/eyelets.
Mount with existing hardware.
Shocks shorter than OE length have reduced travel, this may affect the ride quality and handling of the motorcycle.
Lowering the motorcycle will reduce ground and cornering clearance.
Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues such as swingarm/axle to exhaust contact, as well as chain/belt guard or tire contact.
OE upper shock mount covers will not fit with these shocks.
Not for use with rear lowering kits.
May require custom mounting on models that have OEM-style offset mount shocks.
-----------------------------------------------
Color/finish Black, Chrome, Anodized
Extended length 292.00mm (11.50")
Material Aluminum, Steel
Damping method Gas-filled
Mounting position Rear
Tank location Internal
Height adjustment Lifts 12.70 mm (0.50"), Lowers 12.70 mm (0.50")
Reinforced structure Standard
Guy Single tube coilover
Spring type Single progressive stiffness
Sold in pair
* Compatibility:
2002-2003 Harley-Davidson 883 Roadster XLR - -
2002-2003 Harley-Davidson 1200 Custom EFI XLC - -
1999-2003 Harley-Davidson 883 Custom XLC - -
1996-2003 Harley-Davidson 1200 Sport XLS - -
1996-2003 Harley-Davidson 1200 Custom XLC - -
1988-2003 Harley-Davidson Sportster 1200 XLH - -
1987-2003 Harley-Davidson 883 Hugger XLH - -
1986-2003 Harley-Davidson Sportster 883 XLH - -
1986-1995 Harley-Davidson 883 Deluxe XLH - -
1986-1987 Harley-Davidson Sportster 1100 XLH - -
1983-1985 Harley-Davidson Sportster 1000 XLX - -
1983-1985 Harley-Davidson Sportster 1000 XR - -
1979-1985 Harley-Davidson Roadster 1000 XLS - -
1979-1985 Harley-Davidson Sportster 1000 XLH - -
1979 Harley-Davidson Sportster 1000 XLCH - -
1977-1979 Harley-Davidson Café Racer XLCR - -
