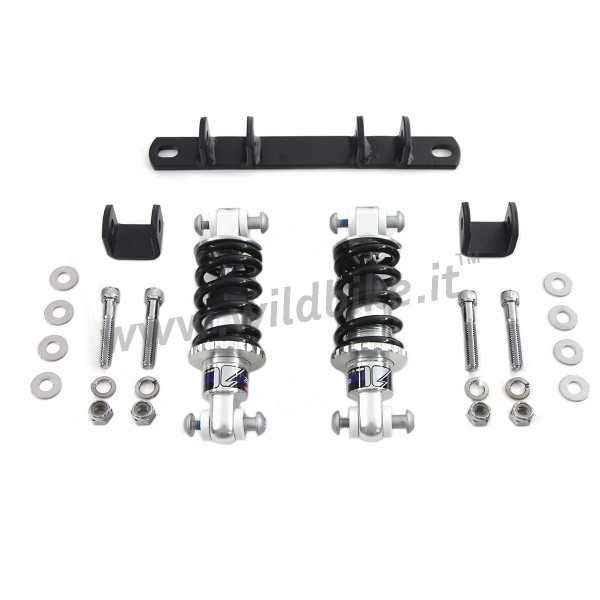

The one-seat retractable kit includes two 5 "shock absorbers and a lower black bracket. The kit includes a saddle bracket, two lower brackets, four 5/16 "-18 2" cap bolts, four locking washers, four flexible nuts of 5/16 "-18, eight 5/16".Dimensions are as follows, the shocks themselves are 125 mm long from centre of mounting eye to centre of mounting eye.The mounting bolts for the shocks are 8mm. Variable spring preload adjustment The holes in the mounting bracket are 180mm centres this is where the bracket bolts to the underside of the seat, they are 9mm in diameter and are elongated along the length of the bracket to a length of 14mm.
Therefore, the holes measure 167mm narrowest , 194mm longest and 180mm centres.
The shocks are 100mm centre to centre apart or 50mm off the centre line to the left and right.

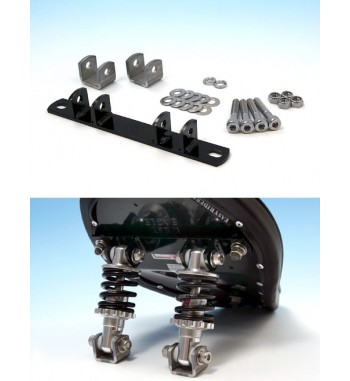

The single-seat retractable kit includes a mini 4 "shock absorber and a black bracket.Includes a saddle bracket, lower bracket, mounting hardware and a mini spring shock absorber
Chrome model with aluminium top and reeded edge comes with a threaded Stud from 1/" 4-28 and another from 1/4 " -20 for mounting on different saddles Harley Davidson models
The single-seat retractable kit includes a mini 5 "shock absorber and a black bracket.Includes a saddle bracket, lower bracket, mounting hardware and a mini spring shock absorber
Mini shock absorber with 5 "(125 mm) length with visible spring.A great way to add mono seat to the bike. Adjustable preload has a spring ratio of 170 Kg / inch.
Perfect black springs for shock absorption and rigid frames for seat.The final part is based prepared for inserting the bolt on the frame at the bottom of the seat
for Harley-Davidson XL 1200T Superlow,XL 1200C Custom,XL 1200CX Roadster,XL 1200X Forty Eight,XL 1200V Seventy-Two,XL 1200XS 48 Special,XL 883L Superlow,XL 883N Iron,XL 1200NS Iron.The kit is designed to install all Mustang solo seats and large of Drag Specialties.The saddle is sold separately and available in many models
