Plug and play.
Classic round shape and high-tech negative LCD display with functions such as speed, odometer, trip meter, hour meter, and 6 indicator lights.
This instrument provides Harley-Davidson® riders with all the information they need and gives their bike a cutting-edge look.
Warning lights for oil, engine warning, alarm, high beam, fog lights, voltage, anti-theft, cruise control, ABS, and turn signals.
Technical Specifications:
Odometer (0 - 225 mph)
Tachometer (0 - 10,000), Shift Light (2,000 - 10,000 RPM), Max RPM (0 - 10,000 RPM)
Odometer (0 - 999,999 miles)
Tripmaster (0 - 9,999 miles)
Oil Maintenance (999 - 10,000 miles)
Voltmeter (DC 8V - 18V)
Overspeed Warning (20 - 225 MPH)
Fuel Gauge (6 Levels | 1 Level = 16.6%), Fuel Capacity (Off/1 - 9.9 US Gallons)
Compatible with models with handlebar-mounted instruments.
----------------------------------
Calibration: 0 km/h – 360 km/h (0 mph – 225 mph)
Housing Color: Black
Character Color: White
Dial Color: Black

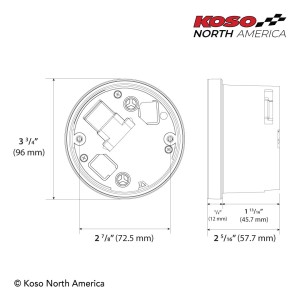

Outer Diameter: 95 mm (3-3/4")
Model: DL-04HD
Depth: 58.4 mm (2-5/16")
Style: Electronic, Multifunctional
Handlebar Mount
Fits:
2015-2017 Harley-Davidson FXDL Dyna Low Rider
2016-2017 Harley-Davidson FXDLS Low Rider S
2012-2017 Harley-Davidson FXDB Street Bob
2012-2017 Harley-Davidson FXDWG Dyna Wide Glide
2012-2017 Harley-Davidson FXDF Fat Bob
2012-2014 Harley-Davidson FXDC Super Glide Custom
