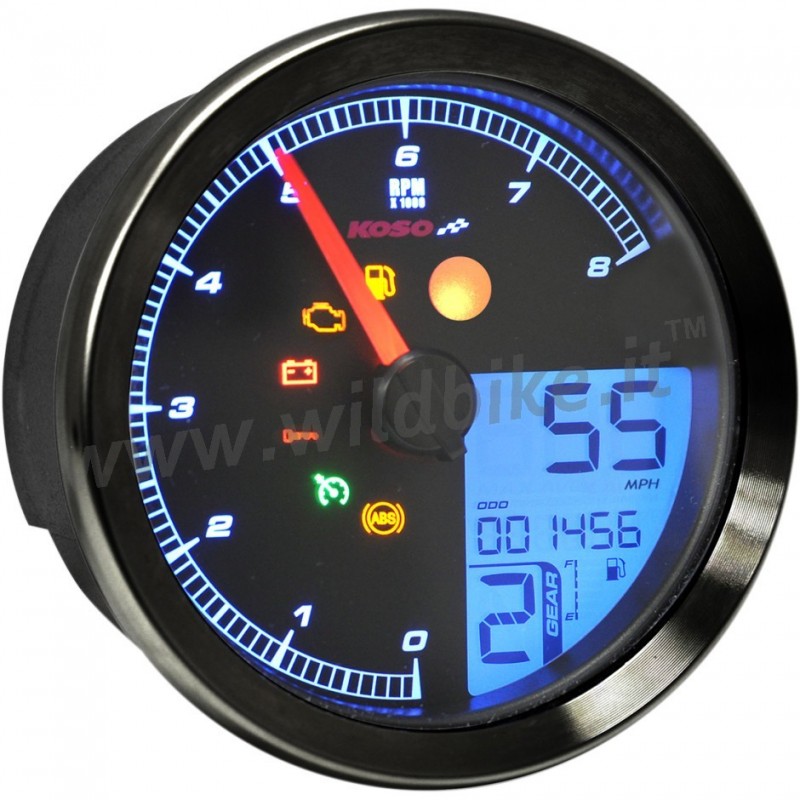

HD-04 Speedometer/Tachometer
High-quality plug-n-play design
Eight-color changing LCD display
Features tachometer, speedometer, odometer, engine temperature and fuel level
Six indicator lights; fuel, engine, battery, cruise control, ABS and anti-theft
Installation on the original speedometer housing.Measures 3.30" diameter without bezel; 3.73" diameter with bezel
Fits models that use 3-3/8" stock mounting cup.
-----------------------------
Tachometer Display range : 0 ~ 8 000 RPM
RPM shift light Setting range : 2 000 ~ 8 000 RPM
Warning lights on when exceed setting value
Setting unit : 100 RPM
Max RPM warning mode Setting range : F-OFF (lit.), F-ON (blink)
Speedometer Display range : 0~360 km/h (0~225 mph)
Display unit : 1 km/h (mph)
Odometer Display range : 000000 ~ 999 999 km (mile)
Display unit : 1 km (mile)
Trip meter Display range : 0 000.0 ~ 9 999.9 km (mile)
Display unit : 0.1 km (mile)
Tire circumference Setting range : 50 ~ 210%
Setting unit : 1%
Engine Temperature Setting range : -40 ~ 215°C (-40 ~ 419°F)
Effective voltage DC 12V
Fuel level Display range : 6 levels
Display unit : 16.67%
Clock Setting range : 12 / 24 hour format
Volt meter Display range : 8 ~ 18 V
Meter standard JIS D 0203
Gear position N , 1, 2, 3, 4, 5, 6
Indicator lights
Fuel (Yellow)
Engine (Orange)
Battery (Red)
Anti theft (Red)
Cruise control (Green)
ABS (Red)
Meter size D 94.7 x 55.8 mm
Meter weight 164 g
The XL models require the separate purchase of the fuel sensor kit (P / N 61200008) to use the fuel level and the flow function
Fits:
2004 - 2006 Harley-Davidson 1200 Custom XLC
2006 Harley-Davidson 1200 Low EFI XLL
2006 Harley-Davidson 1200 Low XLL
2007 - 2012 Harley-Davidson 1200 Nightster XLN
2004 - 2006 Harley-Davidson 1200 Roadster XLR
2004 - 2006 Harley-Davidson 883 Custom XLC
2007 - 2008 Harley-Davidson 883 EFI XL
2005 - 2006 Harley-Davidson 883 Low XLL
2005 - 2007 Harley-Davidson 883 Roadster EFI XLR
2011 - 2013 Harley-Davidson 883 SuperLow XLL
2004 - 2006 Harley-Davidson 883 XL
2009 - 2013 Harley-Davidson Iron 883 XLN
2010 - 2013 Harley-Davidson Sportster Forty-Eight XLX
2012 - 2013 Harley-Davidson Sportster Seventy-Two XLV
shipping time: 7 days
