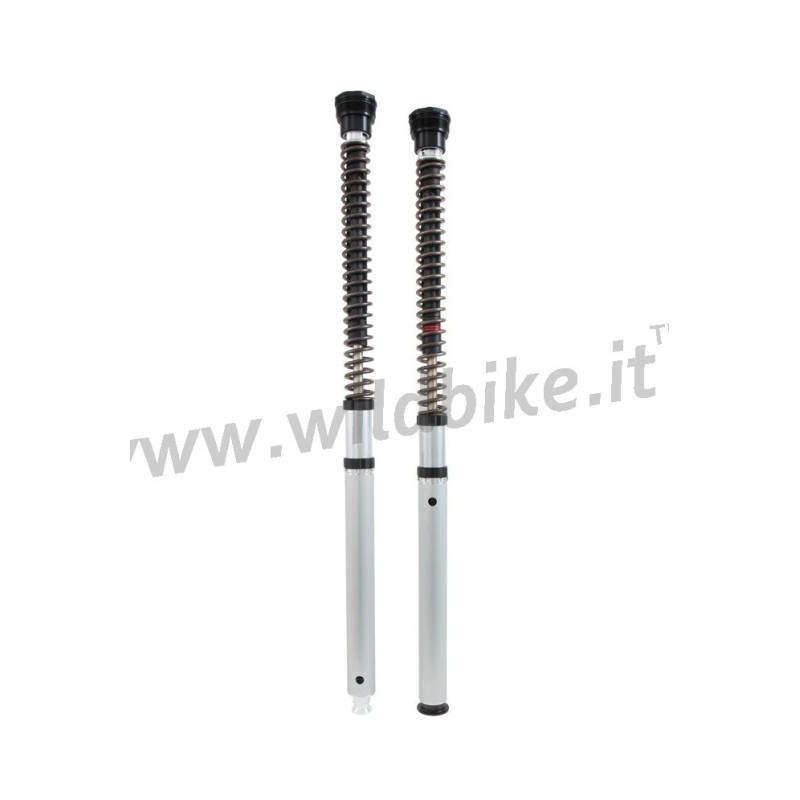

Upgrade the comfort and performance of your Harley-Davidson with the Öhlins NIX30 American V-Twin cartridge kit. Developed from technology used in top-level racing, the NIX30 American V-Twin is a versatile front-end upgrade for Harley riders. Set the cartridges in comfort mode to swallow bumps and achieve a cruising-style ride or switch to sport mode for a stiffer cartridge when you want to attack corners and be more agile. With our NIX30 American V-Twin cartridges, the choice is yours.
The Öhlins NIX 30 cartridge kit for the Harley-Davidson Softail Sport Glide (2018-) is based on race proven Öhlins NIX technology to elevate your ride comfort and performance.
Each fork leg features an 8-mm steel shaft, an aluminum damper tube, and 25-mm pistons, greatly reducing the dreaded brake dive. To maximize damping performance within the confines of each fork leg, compression and rebound damping are separated between the two legs.
Optional spring rates are available to accommodate individual rider weights, usage, and preferences. Whatever your needs are, you'll be amazed by how much the NIX 30 cartridge kit transforms your riding experience.
Features
Öhlins NIX technology
External compression and rebound adjustment
External preload adjustment
30-mm piston diameter
Range of springs available
Öhlins settings library
Spring series: 08423-xx (order separately)
Recommend fork oil: 962112 (1 liter) or 962113 (4 liter) R&T #5 (approx SAE 7.5W)
ABE approved.
Purchase the appropriate springs for your weight (see matching accessories):
Rider weight <60 kg 08423-90
Rider weight 60-71 kg 08423-90
Rider weight 71-80 kg 08423-95
Rider weight 81-90 kg 08423-95
Rider weight 91-105 kg 08423-10
Rider weight 106> kg 08423-10
Fits:
2018-2022 Harley-Davidson FLSB Softail Sport Glide 107 Milwaukee-Eight
