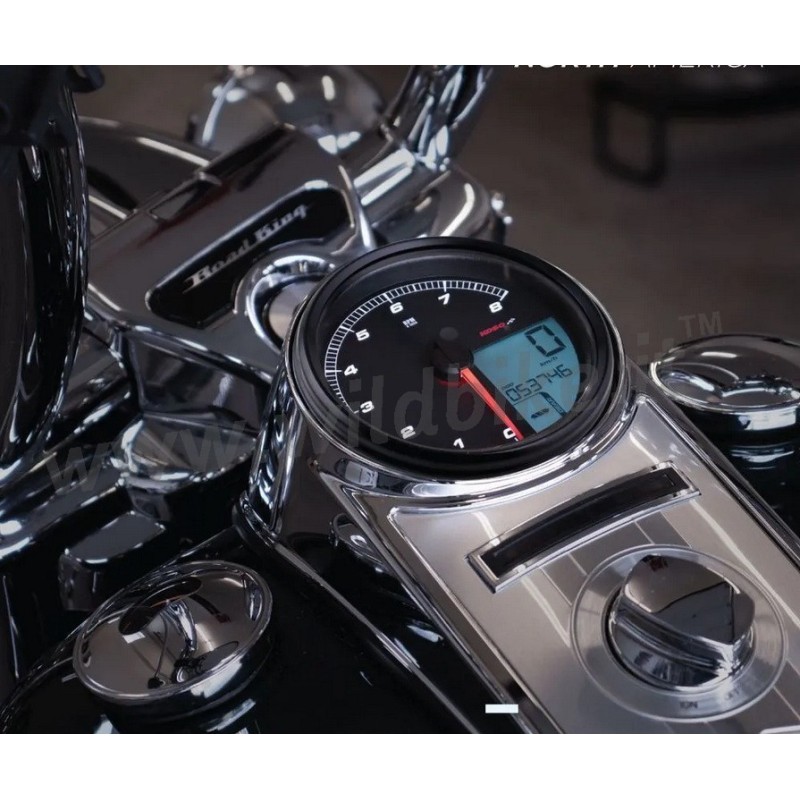

HD-05 Multi-Function Meter
High-quality plug-n-play design

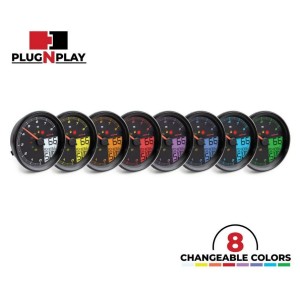

Eight-color changing display
Features tachometer, speedometer, odometer, engine temperature and fuel level
Six indicator lights; rpm, fuel, engine, battery, cruise control, ABS and anti-theft
Measures 4 5/8” diameter
Fits models that use 5” stock gas tank mounting cup.
Specifications
Speedometer Display range : 0 ~ 225 MPH (0 ~ 360 km/h) alternative
Display unit : 1 MPH or km/h (alternative)
Internal display : < 0.5 second
Odometer Display range : 0 ~ 999,999 miles (km)
Returns to zero upon exceeded
Display unit : 1 mile (km)
Tripmeter A/B Display range : 0 ~ 9,999.9 miles (km)
Returns to zero upon exceeded
Display unit : 0.1 mile (km)
Tire circumference Setting range : 50 ~ 210%
Setting unit : 1%
Gear meter Display range : Off / N / 1 ~ 6
Tachometer Display range : 0 ~ 8,000 RPM
RPM shift light Setting range : 2,000 ~ 8,000 RPM
Warning lights on when exceeding setting value (including)
Setting unit : 100 RPM
Max RPM warning mode Setting range : • Light on (F‑OFF)
• Flash (F‑ON)
Engine temperature Setting range : ‑40 ~ 419 °F (‑40 ~ 215 °C)
Fuel level Display range : 6 levels
Fuel tank volume Setting range : OFF / 1 ~ 9.9 US gallons
Average fuel consumption Display range : OFF / L/100 km / km/L /
MPG (US spec) / MPG (UK spec)
Clock Setting range : 12 / 24 H format
Voltmeter Display range : DC 8 ~ 18 V
Backlight brightness Setting range : 1/5 (darkest) / 5/5 (brightest)
Backlight colors Setting range : Red / Orange / Yellow / Green / Blue / Indigo / Purple / White
Mileage maintenance Setting range : Off / 300 ~ 10,000 miles (500 ~ 16,000 km)
Automatic decrease according to the increase of total mileage
Setting unit : 100 miles (km)
Remaining mileage Display range : 0 ~ 9,999 miles (km)
When mileage is lower than 10 miles (16 km), will display LO RNG
Indicator lights RPM shift light
Low fuel
Check engine
Volt
Anti‑theft
Cruise
ABS
Effective temperature range 14 ~ 140 °F (‑10 ~ 60 °C)
Effective voltage DC 12 V
Meter standard JIS D 0203 S2
Meter size (D x W) Ø 4 5/8 x 1 3/4” (Ø 117 x 45 mm)
Meter weight 7.36 oz (208.5 g)
ABE APPROVED 91397*09
Fits:
2014-2022 Harley-Davidson Road King 107 FLHR
2017-2018 Harley-Davidson Road King Special 107 FLHRXS
2019-2022 Harley-Davidson Road King Special 114 FLHRXS
Only for models without traction control
