Reference: 9307
Brand: Drag Specialties
Banner
Scale from 0 to 8000 RPM RPM on a black background.Installs on both handlebars 1 "(2.5 cm) by 3/4" (2.2 cm) in diameter.
UNIVERSAL for ALL TWINS to 4 VALVES with BOAROr 12 VOLT electric.
NOTE: FOR MOTORS WITH SINGLE COIL IGNITION SYSTEM-DUAL VOICE COIL AND FUEL INJECTION requires installation of RPM sensor MH INSTRUMENTS, sold separately, which stabilizes the needle fluctuation and normalizes the number of revolutions.

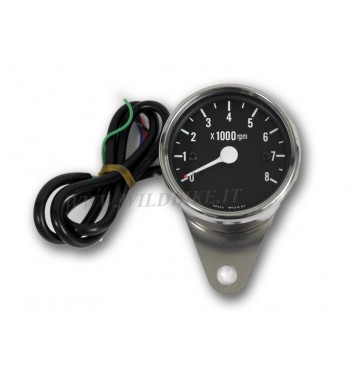

Wire connection:
Cable Green on the coil negative
Black cable on the mass of the frame
Cable Red on ignition key
Cable Blue on lights
Fits also on Triumph Bonneville Speedmaster/America/by following these instructions:
Remove the front headlight, locate the cable that comes from the dashboard odometer, detach the connector and at the exit of this hook tachometer wires.
The green revolution counter attached to the Red connector.
The red and blue striped red wire tacho blue connector.
Black Black tachometera connector is silver.
