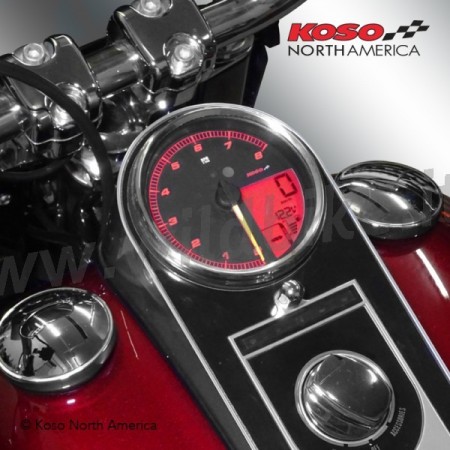

HD-05 Multi-Function Meter
High-quality plug-n-play design
Eight-color changing display
Features tachometer, speedometer, odometer, engine temperature and fuel level
Six indicator lights; rpm, fuel, engine, battery, cruise control, ABS and anti-theft
Measures 4 5/8” diameter
Fits models that use 5” stock gas tank mounting cup.
Specifications
Speedometer Display range : 0 ~ 225 MPH (0 ~ 360 km/h) alternative
Display unit : 1 MPH or km/h (alternative)
Internal display : < 0.5 second
Odometer Display range : 0 ~ 999,999 miles (km)
Returns to zero upon exceeded
Display unit : 1 mile (km)
Tripmeter A/B Display range : 0 ~ 9,999.9 miles (km)
Returns to zero upon exceeded
Display unit : 0.1 mile (km)
Tire circumference Setting range : 50 ~ 210%
Setting unit : 1%
Gear meter Display range : Off / N / 1 ~ 6
Tachometer Display range : 0 ~ 8,000 RPM
RPM shift light Setting range : 2,000 ~ 8,000 RPM
Warning lights on when exceeding setting value (including)
Setting unit : 100 RPM
Max RPM warning mode Setting range : • Light on (F‑OFF)
• Flash (F‑ON)
Engine temperature Setting range : ‑40 ~ 419 °F (‑40 ~ 215 °C)
Fuel level Display range : 6 levels
Fuel tank volume Setting range : OFF / 1 ~ 9.9 US gallons
Average fuel consumption Display range : OFF / L/100 km / km/L /
MPG (US spec) / MPG (UK spec)
Clock Setting range : 12 / 24 H format
Voltmeter Display range : DC 8 ~ 18 V
Backlight brightness Setting range : 1/5 (darkest) / 5/5 (brightest)
Backlight colors Setting range : Red / Orange / Yellow / Green / Blue / Indigo / Purple / White
Mileage maintenance Setting range : Off / 300 ~ 10,000 miles (500 ~ 16,000 km)
Automatic decrease according to the increase of total mileage
Setting unit : 100 miles (km)
Remaining mileage Display range : 0 ~ 9,999 miles (km)
When mileage is lower than 10 miles (16 km), will display LO RNG
Indicator lights RPM shift light
Low fuel
Check engine
Volt
Anti‑theft
Cruise
ABS
Effective temperature range 14 ~ 140 °F (‑10 ~ 60 °C)
Effective voltage DC 12 V
Meter standard JIS D 0203 S2

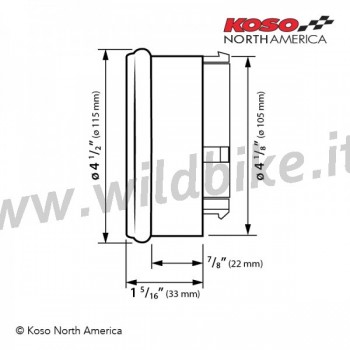

Meter size (D x W) Ø 4 5/8 x 1 3/4” (Ø 117 x 45 mm)
Meter weight 7.36 oz (208.5 g)
Fits:
2017-2019 Harley-Davidson Road King Special FLHRXS
2016-2017 Harley-Davidson CVO Pro Street Breakout FXSE
2016-2017 Harley-Davidson Softail Slim S FLSS
2011, 2017 Harley-Davidson Fat Boy Lo FLSTFB
2013-2015 Harley-Davidson Breakout FXSB
2012-2017 Harley-Davidson Softail Slim FLS
2011 Harley-Davidson Blackline FXS
2011 Harley-Davidson Softail Cross Bones FLSTSB
2016-2017 Harley-Davidson Fat Boy S FLSTFBS
2013-2014 Harley-Davidson CVO Breakout FXSBSE
2011 Harley-Davidson CVO Softail Convertible FLSTSE2
2012 Harley-Davidson CVO Softail Convertible FLSTSE3
2014-2015 Harley-Davidson CVO Softail Deluxe FLSTNSE
2011 Harley-Davidson Softail Rocker C FXCWC
2014 Harley-Davidson CVO Road King FLHRSE
2014-2019 Harley-Davidson Road King EFI FLHR
2011-2012 Harley-Davidson Softail Standard EFI FXSTI
2012-2016 Harley-Davidson Fat Boy Lo FLSTFB
2012-2017 Harley-Davidson Softail Deluxe EFI FLSTNI
2012-2017 Harley-Davidson Softail Fat Boy EFI FLSTFI
2012-2017 Harley-Davidson Softail Heritage Classic EFI FLSTCI
2012-2013 Harley-Davidson Blackline FXS
2011 Harley-Davidson Softail Fat Boy EFI FLSTFI
2011 Harley-Davidson Softail Heritage Classic EFI FLSTCI
2011 Harley-Davidson Softail Deluxe EFI FLSTNI
2016-2017 Harley-Davidson Breakout FXS
shipping time: 7 days
