ELECTRONIC MINI TACHOMETER STEEL 60 MM. WHITE FACE CUSTOM MOTORCYCLE HARLEY

Excellent precision instrument to display the rpm of your horse.

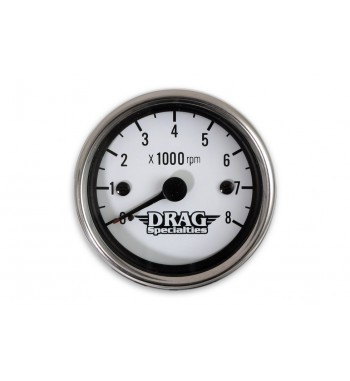

• Tachometer with chromed steel housing
• Scale from 0 to 8000 RPM RPM on a white background.
• Interior light with light bulb light bulb

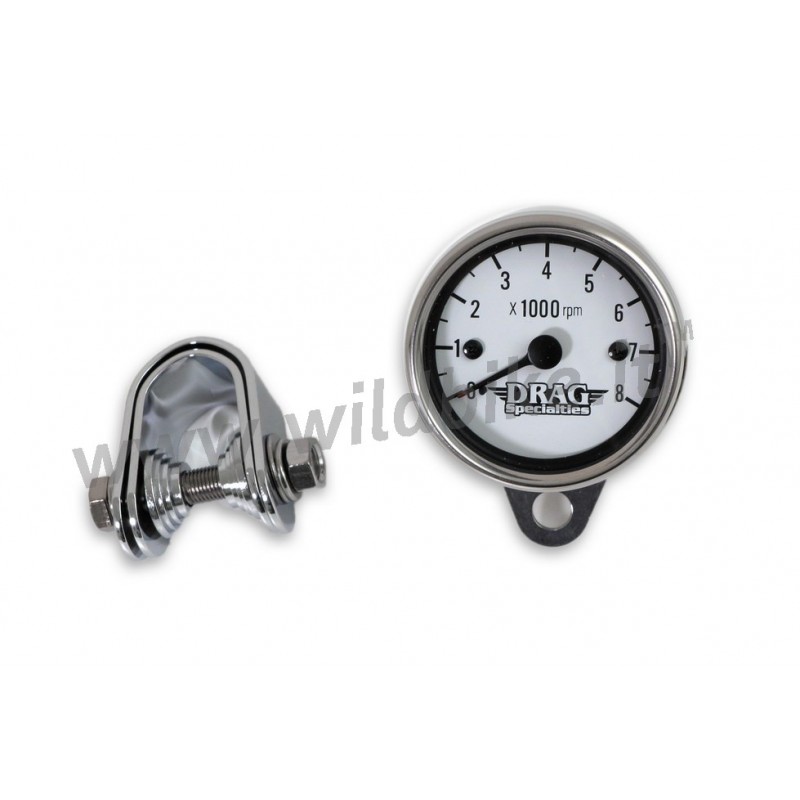

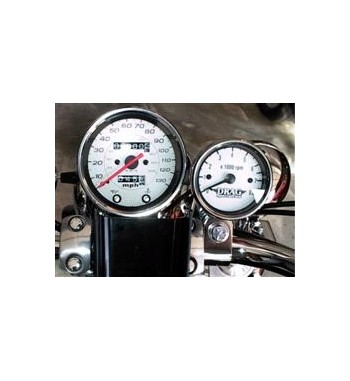

• Installation easy and quick mounting on the handlebar, with universal fixing chrome ring included.
• Installs on both handlebars 1 "(2.5 cm) by 3/4" (2.2 cm) in diameter.

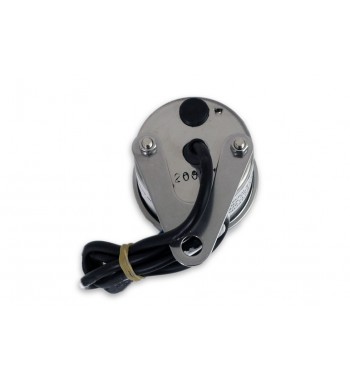

• The connection is simple thanks to 4 electrical connectors.Instruction manual inside.
• Diameter of about 6 cm (2-1/2 ") and a length of 6 cm.

UNIVERSAL FOR ALL MOTORCYCLE V-TWIN 4-VALVE WITH ELECTRICAL 12 VOLT AND FUEL FEED CARBURETOR

Wire connection:

Green wire on the coil negative

Black cable on the mass of the frame

Red cable on ignition key

Blue wire on rear light set

Fits also on Triumph Bonneville Speedmaster/America/by following these instructions:

Remove the front headlight, locate the cable that comes from the dashboard odometer, detach the connector and at the exit of this hook tachometer wires.
The green revolution counter attached to the Red connector.
The red and blue striped red wire tacho blue connector.
Black Black tachometer with a connector is silver.
